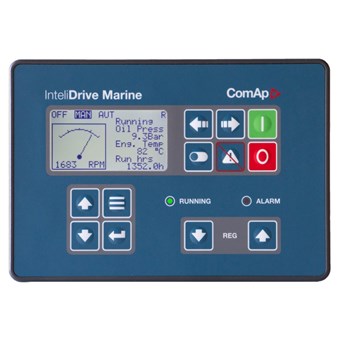

COMAP InteliDrive Marine ID2C2004BAA Inteli Drive Marine

COMAP InteliDrive Marine ID2C2004BAA Inteli Drive Marine

Brand = COMAP
InteliDrive Marine
Engine controller for Marine Applications
Order code = ID2C2004BAA

Engine controller for marine Tier4 Final propulsion applications
Control, monitoring and protection for any type of marine engine
Support of EFI (ECU) engines via CAN/J1939 or Cummins Modbus
Redundant architecture by using backup redundant protection unit Inteli RPU
Support of two independent power supplies via I-RPU module
7 configurable binary inputs, 7 configurable binary outputs
9 configurable analogue inputs (3 resistive, 3 current 0-20mA, 3 voltage 0-10V)
Option for additional inputs/outputs
Selectable protections warning/cooling down/shutdown
3 level of controller setting / operation password protection
Ethernet, USB, GSM / GPRS, RS485 or RS232 / Modem / Modbus communication
Automatic SMS on alarm
On-line control and monitoring over web pages (embedded web server)
Real time clock and event history log
Toggle button with additional features adjustments
Up/Down speed regulation buttons on the front facia
2 languages (user changeable), Chinese language support
Front panel sealed to IP65
